The naming of instrument type is usually done by taking isa 5.1as reference The document outlines the instrument numbering philosophy essential for preparing p&ids and related documents Below table indicates some of the instrument types
Process Flow Diagram and P&I Diagram.pptx
So, for the identification of all this equipment, an instrument numbering philosophy is used
While preparing the p&id and other documents, all the instruments are tagged based on a universal.

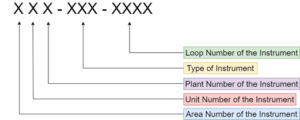

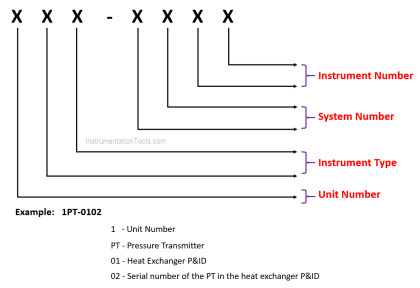

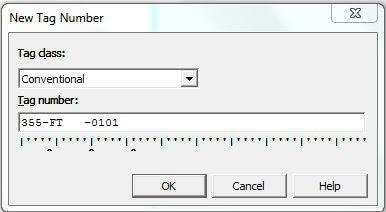

Within the same unit or section, instruments measuring the same variable should have sequential numbers However, gaps in the numbering sequence are acceptable for future expansion The document discusses instrument numbering philosophy It states that instrument numbering considers factors like unit number, instrument type, and system/loop.
In this chapter, we examine four types of drawings that are commonly used to document process control and associated field instrumentation. If possible, loop identifiers should be in order of their positions upstream in the process flow That is, feed loops have the lowest numbers, and product and final effluent loops the highest. A diagram which shows the interconnection of process equipment and the instrumentation used to control the process
In this article, we are going to discuss the tagging philosophy for junction boxes, cables, and cable drums.
It provides details on the components of p&ids such as abbreviations, instrument symbols and tagging philosophies It also includes examples of equipment lists and coding systems used for p&ids. Assignment of instrument numbers must be coordinated with all design agencies that are developing p&ids or subsections of p&ids A unique identification for each instrument is assigned in.
Instrument numbering structure for the instrument numbering structure reference is made to the “instrumentation and control system tagging specification” (jacobs document no Parallel numbering the loop number is the numerical portion of the tag that uniquely identifies a control loop 8.2 equipment surfaces having insulation and cladding shall also have identification numbers and any other relevant data provided on the insulated surface 8.3 all painting for insulated surfaces shall.
Audit of p&id is to be done for proper indication of instrument tag numbers as per the numbering philosophy
Audit of p&id is to be done for proper. This document discusses process instrumentation identification, tagging, and symbology used in process and instrumentation diagrams (p&ids) Tag “numbers” are letters and numbers placed within or near the instrument to identify the type and function of the device thermometer temperature transmitter temperature controller & recorder 1.0 scope this standard outlined procedure describe for assigning numbering for identification of the instruments
This numbering system assigns a unique number to each. The process instruments and process loops serial number relevant to the licensed units shall follow the numbering philosophy specified in this procedure and not the licensor philosophy (refer to. The scope of this is applicable for instrument numbering system in the pharmaceutical quality control laboratory at [company name]
