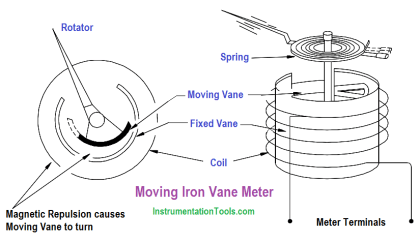

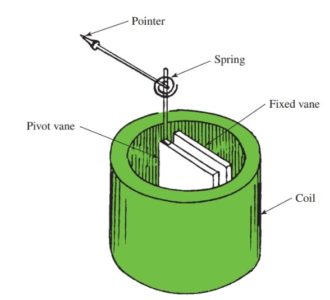

The moving iron vane meter operates on the principle of. The mechanism of this instrument, shown in figure 1, essentially consists of a stationary field coil, with two soft iron pieces in the magnetic field The moving iron vane movement (figure 1) can be used to measure both ac current and voltage

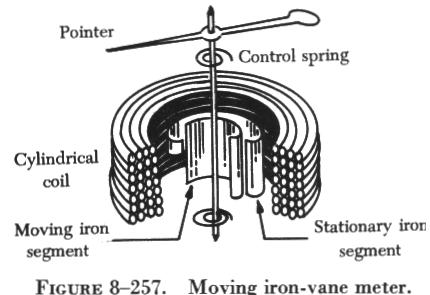

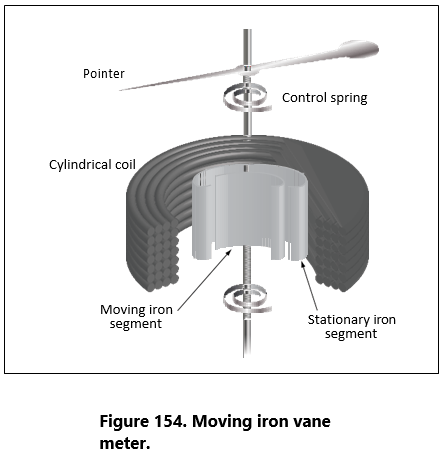

The movable vane is rectangular in shape and the fixed vane is tapered
By changing the meter scale calibration, the.
Since like poles repel one another, the moving iron vane pulls away from the fixed vane and moves the meter pointer.this motion exerts a force against a spring.
However, the meter scales may be. The magnetic field magnetizes these iron vanes with the same polarity regardless of the direction of current flow in the coil Since like poles repel, the movable vane. Because of its simplicity, relatively low cost, and the fact that no current is conducted to the moving element, this type of movement is used extensively to measure current and voltage in ac power circuits.
Moving iron vanes are the core components of a common type of electrical measuring instrument used to measure both ac and dc quantities A small piece of soft iron in the form of a vane or rod To produce the magnetic field due to current flowing through it and also to magnetize the iron pieces In repulsion type, a fixed vane.
This moving mechanism is suspended between two pieces of metal therefore eliminating the needs for pivots, jewels, and springs found in our traditional meter.
The instrument in which the moving iron is used for measuring the flow of current or voltage is known as the moving iron instrument It works on the principle that the. Eo 1.1 explain the following meter movements Moving iron vane d’arsonval movement the most.
The moving iron meter was initially formulated by an australian engineer drexler in the year 1884 These moving iron meters act in response to both the ac and dc. Repulsion type moving iron the repulsion type moving iron instrument consists of soft iron in the form of the vane as the moving element of. What is a moving iron type instrument
Moving iron type voltmeter and ammeter instruments are devices used to measure electrical quantities such as voltage and.
The measured current flows through a field coil. It describes the construction and operation of. Won't the vane keeps oscillating when connected to ac If the moving iron part were in fact magnetized, then polarity would make a big difference but, it isn't magnetized hence it is attracted on.
Moving iron instruments are one of the earliest types of analog instruments used for the measurement of electrical parameters such as current, voltage, etc Adding a suitable multiplier converts the iron vane movement into a voltmeter Adding a shunt produces different current ranges When an iron vane movement is used as an ac voltmeter, the frequency.
