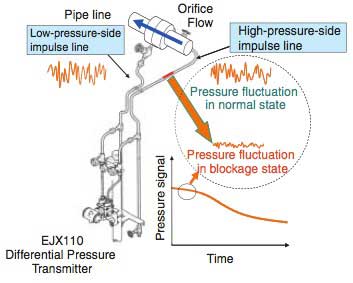

Pressure sensing lines, also known as impulse lines are used to transfer accurate process pressure to transmitters Problems are leaks, blockage, and containment. However, issues such as voids,.
Difference between filled impulse line and purged impulse line
Provides primary isolation closest to the process nozzle for safe maintenance
Enables leak testing, line blowing, and instrument removal without depressurizing.
Correct impulse line installation is the single biggest factor in pressure transmitter accuracy Here's what the best practices actually require. A way to aid pressure sensing instruments in situations where direct contact must be avoided is by using a filled impulse line An impulse line extends from a process.

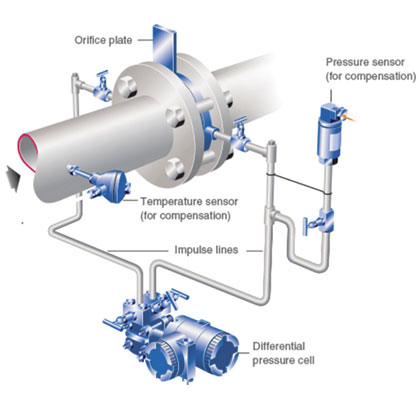

In figure 4, which provides a view of the interior of the instrument room, you can observe that the impulse lines are configured to slope upward towards the. The impulse line carries the process pressure from the tapping point to the transmitter
