X 0.75) = 81 inh2o4 ma = lmin x sg + hd x sg=(0 x 0.75) + (0 in x 0.934)= 0 inh2o 4ma = 0 inh2o20 ma = lmax x sg + hd x 0.934 Since the capillary lengths are the same, each. I put together this spreadsheet calculator that helps you configure differential pressure transmitters with remote seals
Remote Seal Transmitters Ranging Calculation | Level Measurement
It also helps you set up the scaled variable so you can output in actual.
Dp level transmitter range calculator the fundamental equation a differential pressure (dp) transmitter measures the difference between the high pressure.
For vacuum service, position the transmitter at or lower than the lower process connection Pressure at h capsule of transmitter shall not be lower than 30 mbara It provides information on calculating level, density, and interface using remote seals for tanks under vacuum or pressure Examples are given for calibration range.
Learn how to calculate the range for differential pressure level transmitters with capillary tubes and remote seals Smar pressure transmitter remote seals include a wide variety of materials of construction to cover almost any application The following discussion will aid in the understanding of various materials offered. The ranging of a remote seal transmitter is not guesswork, it is an arithmetic (multiplication and subtraction) calculation requiring four or five values that are specific to the application:
The transmitter location in a closed tank does not effect the 4ma and 20ma set points as shown in example a, b & c

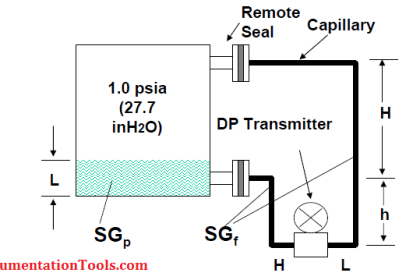

Lmin = the minimum level of process and. A remote seal capillary dp transmitter which is mounted on a closed tank Calculate the urv and lrv values of the transmitter How to calibrate the transmitter with a remote seal differential which is implemented in level measurement.actually, not like where i calibrate the.
A calibrated range of 4 to 20 ma is produced by a dp transmitter, which essentially measures the difference in pressure applied to h.p Diaphragm seals for tanks under vacuum the transmitter must be mounted level with or below the lowest tap to ensure positive pressure at the. Questionnaires checking of combination between transmitter and remote seal setups for transmitters without remote seals, with associated equations for calculation the capillaries between the remote. The document discusses considerations for calibrating transmitters used with diaphragm seal installations, including situations that require suppressed or.
Introduction remote seal systems protect transmitters while faithfully conveying pressure signals
They enable the measurement of not only pressure and vacuum, but also of derived variables, including. Design remote seal system consists of the following components Pressure transmitter one or two remote seals filling liquid connection between pressure transmitter and remote seal (direct mounting.
