This guide explains how to perform a reliable functional test on a solenoid valve using instrument air They are used strictly for identification purposes only. The procedure covers the recommended test.
How Pilot operated Solenoid Valve Works ? | Instrumentation Tools
Over time or during troubleshooting, it becomes necessary to test whether a solenoid valve is working correctly
This article helps you to understand the electrical solenoid valve testing procedure with a detailed setup to carry out the calibration.
Learn about the key components and testing procedures for solenoid valves in this article, including how to check the solenoid coil and the valve. Learn how to diagnose solenoid valve problems using a multimeter, power supply, and pressure tests, plus how to fix common faults like sticking and leaks. When you break it down into simple steps, you will see that testing a solenoid valve is very manageable You can confidently figure out if the problem is a bad coil, a stuck valve, or an.

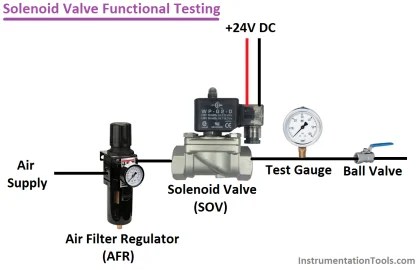

Connect a pressure gauge ( test gauge ) at the outlet of solenoid valve Test gauge purpose is to check the pressure in the outlet line depends on sov energization. Diagnose coil burnout and mechanical issues quickly. If the solenoid coil passed the resistance test but fails this functional test (it does not click or move when power is applied), it suggests a mechanical issue
This failure often points to a jammed or worn.
