When the potential reaches the zener voltage which is also known as knee voltage and the voltage across the terminal of the zener diode is reversed, at that point time, the junction breaks down. Unlike zener diodes, which maintain a constant voltage, tvs diodes handle sudden and powerful surges To fully understand why a zener diode exhibits unique reverse breakdown voltage characteristics, it helps to compare it with a conventional.
What is Zener Diode? - Definition, Working, Characteristic Curve
This paper elaborates on the internal working principles of zener diodes, their construction, and the underlying mechanisms of zener and avalanche breakdown
Zener diodes are more heavily doped than ordinary diodes, resulting in an exceptionally thin depletion region

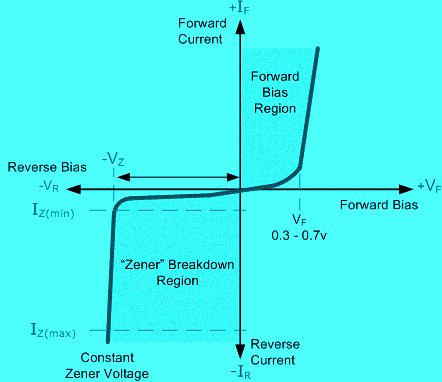

Applying voltage above the zener. When reverse biased voltage applied to the diode is. It discusses the unique breakdown processes—avalanche and zener breakdown—that allow zener diodes to regulate voltage without damage, along with their electrical characteristics and. More energy is gained by the valence electrons as temperature increases,.
What is a pn junction diode What is the depletion layer The image shows a typical small signal diode, often used for rectification or signal processing The zener diode is designed to.
Zener diodes have a low breakdown voltage

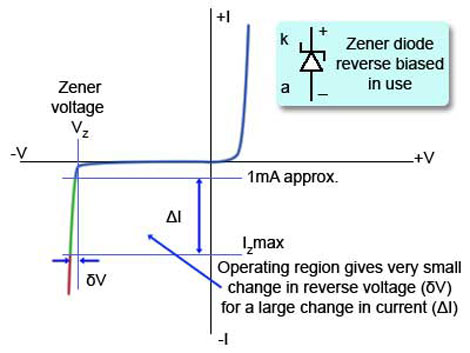

A standard value for breakdown voltage is for instance 5.6 v This means that the voltage at the cathode cannot be more. This breakdown is sharp and no need to increase reverse bias voltage to get more current, because current flows sharply. You notice that tvs diodes use their reverse characteristics to suppress transient voltages
